    2L Double Station Injection Blow Moulding Machine 100ml-3000ml Bottels

    Ask Lasest Price
    Brand Name : JWELL
    Certification : CE ISO
    Price : Negotiable
    • Product Details
    • Company Profile

    2L Double Station Injection Blow Moulding Machine 100ml-3000ml Bottels

    Product Description

    Product Application

    Performance and advantages
    ·Suitable for producing 100ml-3000ml different size of Milk bottle,soy sauce bottle,yellow wine bottle.
    200ml-5000ml different size of shampoo bottle,body wash bottle,- detergent bottles and others Toiletries and different children's toys.
    Optional pearly lustre layer co-extrusion system.
    According to the product size.select different cavity of die head.
    According to the different material,optional JW-DB single station hydraulic screen-exchanger system.

    According to customer's requirement.optional auto-deflashing on line,scrap conveying on line,finished product conveying on line and others.

    Model
    Unit
    BM02D
    BM05D
    BM12D
    BM20D
    Max product volume
    L
    2
    5
    12
    20
    Dry cycle
    Pc/h
    900*2
    700*2
    600*2
    600*2
    Die head structure
    Continuous type
    Main screw diameter
    mm
    65
    75
    90
    90
    Max plasticizing capacity (PE)
    kg/h
    70
    90
    160
    160
    Driving motor
    Kw
    22
    30
    45
    45

    Oil pump motor power
    Kw
    7.5
    11
    15
    15
    Clamping force
    KN
    40
    70
    120
    160
    Space between platen
    mm
    138-368
    150-510
    240-640
    280-680
    Platen size W*H
    mm
    286*330
    350*400
    450*500
    500*520
    Max.mould size
    mm
    300*350
    360*400
    500*520
    560*520
    Platen moving stroke
    mm
    420
    450/520
    600/650
    650
    Heating power of die head
    Kw
    6
    7.5
    10
    12.5
    Machine dimension L*W*H
    m
    3.0*1.9*2.4
    3.7*3.1*2.7
    4.2*3.2*3.0
    4.3*3.2*3.1
    Machine weight
    T
    5
    8.5
    12
    14
    Total power
    Kw
    45
    60
    90
    93

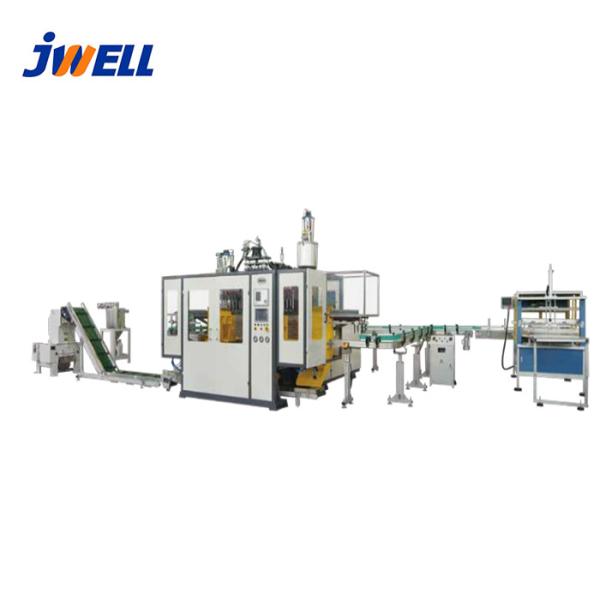

    JWZ-BMJY02D/05D/12D/20D Double Station Blow Molding Machine

    Jwell factory

    2L Double Station Injection Blow Moulding Machine 100ml-3000ml Bottels

    Main Features

    1) PETG is called low temperature PET,it's a new environment-friendly packing material with features such as high luster,good transparency,excellent barrier proprty,self-adhesion,which is used for glue bonding and high-frequency processing.

    2) CPET is a kind of modified PET.with good resistance to high temperature,it is usually used for package in microwave oven.

    3) PET stereoscopic optical grating sheet,can be used as top grade package for cosmetics,medicin,tobacco&alcohol and common goods such as stationery,advertisements,posters and all kinds of cards.

    4)PLA is a kind of line shape Aliphatic Polyesters.PLA can be used in rigin package of fruits,vegetables,eggs,cooked food and roast food,also can be used for packaging of sandwich,biscuit and some other package like fresh flower.

    Certifications
    2L Double Station Injection Blow Moulding Machine 100ml-3000ml Bottels
