    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line

    Ask Lasest Price
    Brand Name : Jwell
    Model Number : JWS65/33
    Certification : CE ISO SGS
    Supply Ability : 20 Set/Sets per Month Jwell HDPE/PP energy-saving high speed water/gas supply extrusio
    Price : Negotiable
    • Product Details
    • Company Profile

    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line

    Product Description

    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line:

    Steed reinforced pipe has the features of not easy in corrosion of the steel band, the top of the steel band has the thicker protection layer, reinforced rib is not easy in collapse, the seam is connected strongly, the tensile strength of the pipe in axial direction is high so that during the use the pipe is not easy in leakage. We have applied the patent for this machine and the patent numbers are ZL200920073200.4 and 200910054675.3.

    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line

    The steel reinforced spiral pipe has a high ring stiffness and good flexibility in axial direction, so that the pipe system has the features of stiffness and flexibility. When happening the unfavorable situations such as the soil subside unevenly, rise of underground water, the load of the partial ground is too big, earthquake or other disasters, the pipe can adapt the situations by flexible deformation, so that the connection point will not leak or broken due to the big stress and deformation. This pipe has combined all the advantages of the normal no pressure plastic pipes and the strength of the steel rib, so this pipe can meet different engineering requirements, this pipe can be used widely for delivery of corrosion or non corrosion no pressure liquids.


    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line



    Detailed Images
    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line

    Extruder

    Name: YF600 Twin screw extruder

    Brand:Jwell

    Screw: Jin Hailuo

    Type:65/33

    Capacity:100-120kg/h

    Electrical parts

    Power: 37kw
    Motor: Siemens
    Control Panel: Simens PLC
    Electrical Spareparts: Schneider

    Frequency convertor: ABB


    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line

    Haul-off Unit

    Quantity of claw: 3

    Haul-off motor:1.5KW x 3 sets
    Imported inverter
    Effective Length of haul-off caterpillar: 1800mm
    Speed :1.2-20m/min

    Vacuum calibration table

    Calibration tanks and basin are made of stainless steel
    Vacuum tank length: 8000mm.
    Cooling tank: 1800mm
    Water pump:3kw+4kw
    Vacuum pump: 3kw+4kw

    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    Company Introduction

    Jwell--The largest plastic extrusion machine manufacturer in the world

    Jwell, founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area. JWELL is the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops. Jwell has imported more than 1000 sets of CNC processing and advanced detective equipment from Korea and Japan. Jwell produces more than 2000 sets of advanced production line exported to more than 20 countries in the world every year.

    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line

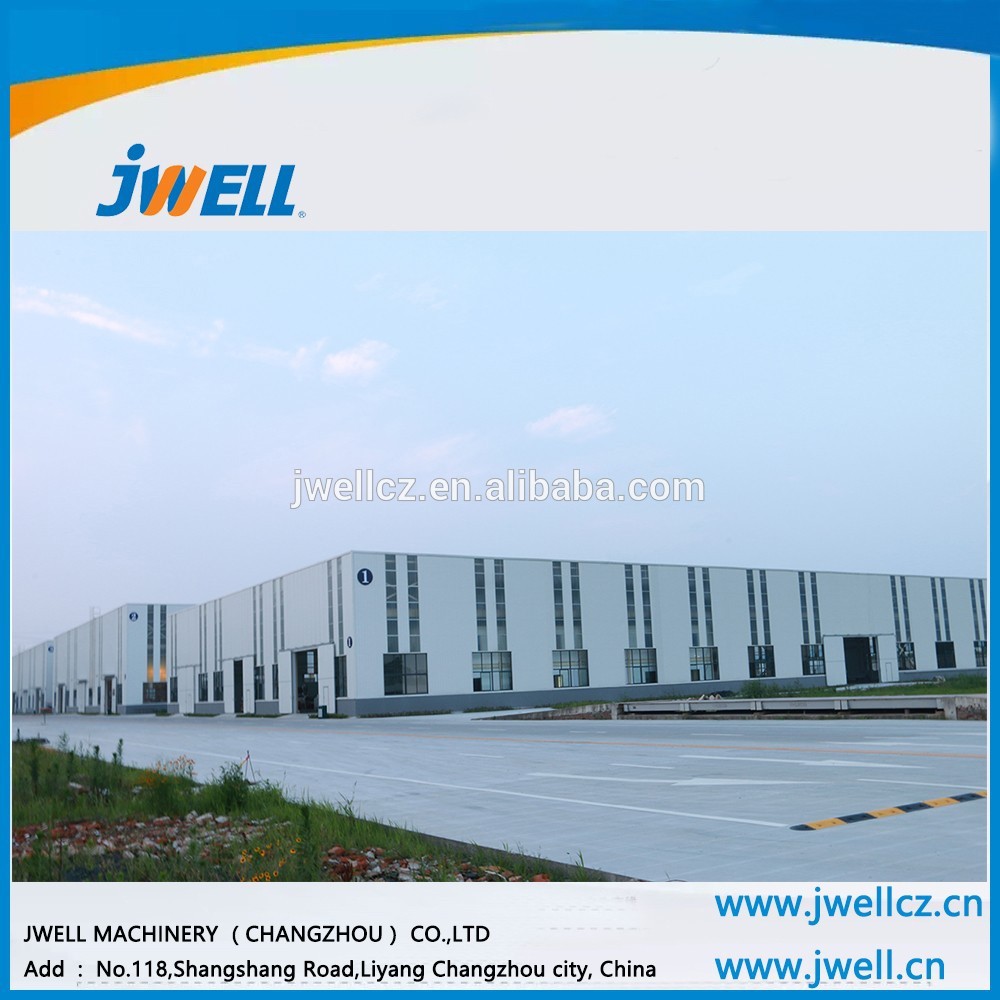

    JWELL MACHINERY (CHANGZHOU) CO., LTD

    JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province, a high-tech manufacturer specializing in research and development of plastic extrusion equipment. The factory area is of 400 acres; We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop. Our enterprise spirit is "Attentive, Enduring, Quick and Orderly", keeping on exploring of new extrusion field. Mostly welcome to new and old customers to visit us for investigation, guidance and cooperation. We are happy to offer powerful support!


    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    Processing equipment
    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line

    Jwell has imported more than 1000 sets of CNC processing and advanced detective equipments from Korea and Japan.


    Shipping

    Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.

    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    Certifications
    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    Exhibition
    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    Jwell Culture
    Jwell Enterprise Spirit: Attentive,Edurung,Quick and Orderly;
    Jwell Quality Orientation:Excellent performance, Perfect Products
    Core Idea: Be honest to people,Be faithful to Jwell

    .

    Jwell Professional Steel Reinforced Spiral Pipe Extrusion Line
    FAQ

    1. How much does it cost?
    Answer: Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.
    2, I want to know more about your company and your products, how?
    Answer: For more information, please visit our website: www.jwell.cn or www.jwellcz.cn. The best way, of course, is to go to our factory and see our products. Jwell welcomes your coming at any time!
    3, How about your after-sale service?
    Answer: When the machines are ready and be sent to your factory, we will sent our engineers to your factory to help your worker to do the installation and train your workers. Above all, we have the maintenance engineers all over the world, who are always ready to go to our customer's factory and provide them with the best after-sale service
    4,Where is your factory located?
    Answer: We are in No.118, Shangshang Road, Liyang, Changzhou city, Jiangsu province. welcome to visit us!!!
    .......
