    Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated

    Product Description

    Product Application

    DWC pipe is mainly used for water drainage system.It is a fully computer controlled line.It features high and stable output capacity,and highly automatic operation.For HDPE,you can choose high efficient single screw extruder.For PVC,you can choose conical twin- screw extruder or parallel twin-screw extruder.Forming system consists mold and corrugator.Mold blocks can be easily changed and they have air or water cooling system.The belling process is on line.High precision cutting can be guaranteed by cutting machine.The production line can also be equipped with SIEMENS PLS system.


    Type
    Pipe Diameter(mm)
    PVC output(kg/h)
    HDPE Output(kg/h)
    Max Speed(m/min)
    Total Power(KW)
    JWSBL-600
    200-600
    650-800
    600-800
    3.5
    500
    JWSBL-800
    200-800
    1200
    1000
    3.0
    680
    JWSBL-1000
    200-1000
    1300
    1200
    2.5
    710
    JWSBL-1200
    600-1200
    1400
    1400
    1.0
    800

    Main Features

    1. High Efficiency Extruder, around 250kW energy cost per ton material.

    2. Optimized Die Head design, suitable for wide material, with Inner Cooling System.

    3. Non-Dust Cutting system

    Certifications
    Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall CorrugatedConduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated
    Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall CorrugatedConduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated
    Detailed Images
    Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated

    Machine Parts

    Name: Main Gearbox

    Brand: Falk

    Original: USA

    High Torque Gear Box, US Brand assembling in China

    Machine Parts

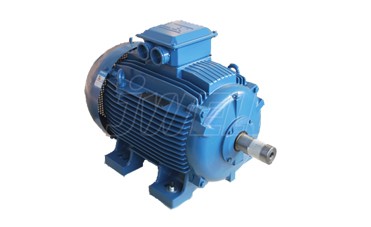

    Name: Main Motor
    Brand: WEG
    Original: Brazil
    High quality AC motor, global service.

    Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated

    Machine Parts

    Name: Die Head
    Brand: Jwell
    Original: China
    Optizimed Hot Runner Design with full Automatic CNC machine production.

    Main Features

    Name: Vacuum Tank
    Brand: Jwell
    Original: China
    Automatic Water Level and Temperature Control;

    Precision Water Flow Control System for Calibrator;

    VFD Vucuum Control System.

    * Inquiry and consulting support.

    * Factory testing available.

    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.

    Packing & Delivery
    Packaging
    Size
    5-6 40 feet containers
    Weight
    30 T
    Packaging Details
    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
